Y15ZR

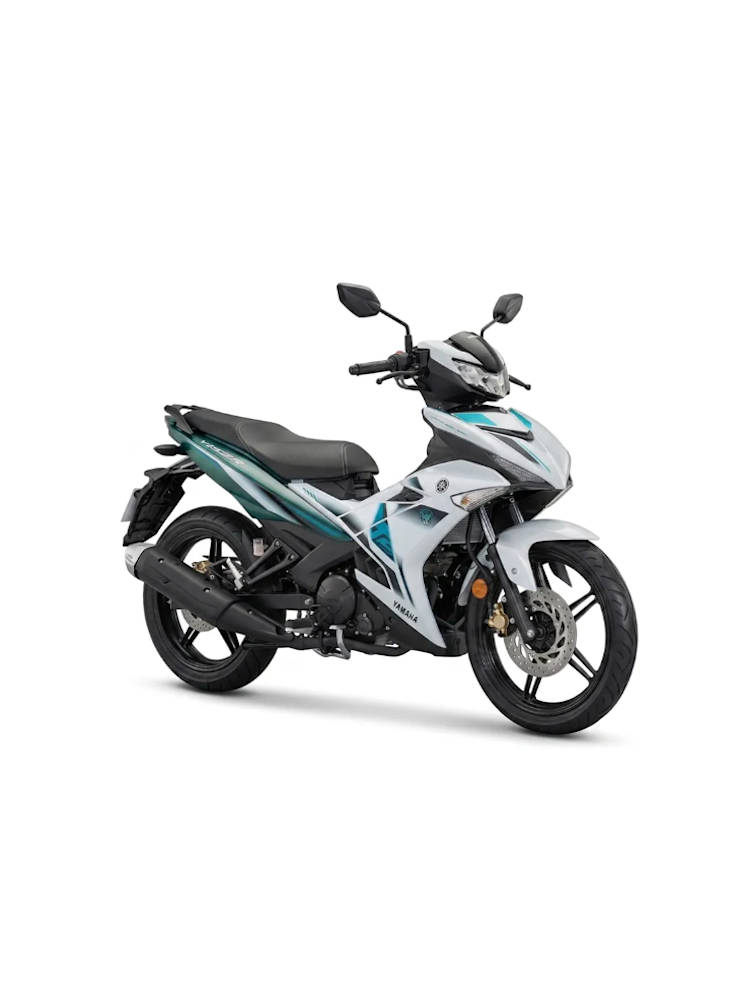

YAMAHA / Y15ZR / MOPED
ENGINE
Type: Liquid-cooled, 4-stroke SOHC
Cylinders: Single Cylinder
Bore x Stroke: 57.0 x 58.7mm
Compression Ratio: 10.4 : 1
Maximum Horsepower: 11.3kW (8500rpm)
Maximum Torque: 13.8Nm(7000rpm)
Starting System: Electric
Lubrication System: Wet Sump
Engine Oil Capacity: 1.15 litres
Fuel Tank Capacity: 4.2 litres
Fuel System: Fuel Injection
Ignition System: TCI
Battery Type: GTZ4V
TRANSMISSION
Transmission Type: Constant Mesh, 5-Speed
Clutch Type: Wet Multi, Plate
CHASIS
Frame Type: Backbone
Overall Length: 1960mm
Overall Width: 670mm
Overall Height: 1080mm
Wheelbase: 1290mm
Minimum Ground Clearance: 135mm
Weight: 115 kg
BRAKES
Front and Rear: Hydraulic Single Disc
SUSPENSION
Front Suspension Type: Telescopic
Rear Suspension Type: Swingarm
TIRES
Front Tyre: 70/90-17M/C (38P)
Rear Tyre: 120/70-17M/C (58P)
